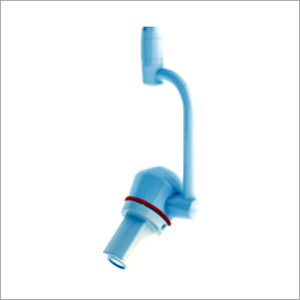

Maquet Orchide HD Camera

Optical characteristics

Maquet Volista Stand

OP Maquet Volista Access

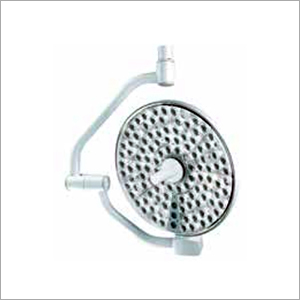

Lighthead

400

600

400

600

Nominal illuminance Ec (lx)

130,000

160,000

With Boost mode

130,000

160,000

Dimming range (%)

10 - 100%with eye sensitivity response

10 - 100% with eye sensitivity response

Light patch diameter (cm/inch)

20-25 / 7.9-9.8

20-25 / 7.9-9.8

Depth of illumination at 60% (cm / inch)

50 / 19.7

50 / 19.7

Color temperature (K)

Fixed: 3,900
Adjustable : (3 levels) 3,900-4,500-5,100

Fixed: 4,300

Color rendering index (Ra)

95

95

Irradiance at nominal illuminance (W/m²)

< 500

< 500

LED life time (h)

> 60,000*

> 60,000*

Ambient light

Available

Available

Shadow dilution

Maquet Volista StandOP**

Maquet Volista Access

400

600

400

600

With two masks

66%

86%

45%

50%

With one lateral mask

100%

100%

71%

75%

Additional options

AIM, LMD

no

Full HD cameras

Wired

Wireless

Signal system

1080i / 1080p

1080p

Number of pixels (megapixels)

2.12

2.12

Zoom range

Zoom 42x

Zoom 42x

Video signal outputs

2 x 3G - SDI

HDMI 1.4
